Brazing Materials |
| |
|
 |
Brazing materials of precious metals have good corrosion-resistance, Oxidation-resistance, wetting property and high heat conductance. Using brazing materials of precious metals, good quality of brazing joint can be obtained. Those products are widely used for electrical engineering, lighting, weapons, aerospace engineering and so on.
With our product portfolio and specialties, we offer a broad range of brazing materials of binary, ternary and multicomponent alloys with Au, Ag, Pt and Pd. SHINE can provide wires and tapes for customers
|
|
|
|
|
|
|
Materials |
| |
Au, Au-Ag alloys, Au-Ni alloys, Au-Cu alloys, Au-Ag-Cu alloys and other gold alloys;
|
Ag, Ag-Cu alloys, Ag-Cu-Ti alloys, Ag-Cu-Ni alloys, Ag-Cu-P alloys, Ag-Pt alloys, Ag-In alloys, Ag-Cu-In alloys, Ag-Sn alloys, Ag-Cu-Sn alloys, Ag-Cu-Zn-Sn alloys, Ag-Cu-Zn-Cd alloys and other silver allys;
|
Pt, Pt-Ni alloys and other
platinum
alloys;
|
Pd, Pd-Cu alloys, Pd-Ag-Cu alloys, Pd-Ag-Cu-Au-Pt-Zn alloy and other palladium alloys;
|
Rh and
rhodium alloys.
|
| |
|
| |
Note: We can supply brazing materials for customized shape, dimensions, composition and melting points.
|
| |
| |
Pt-clad Mo ribbons |

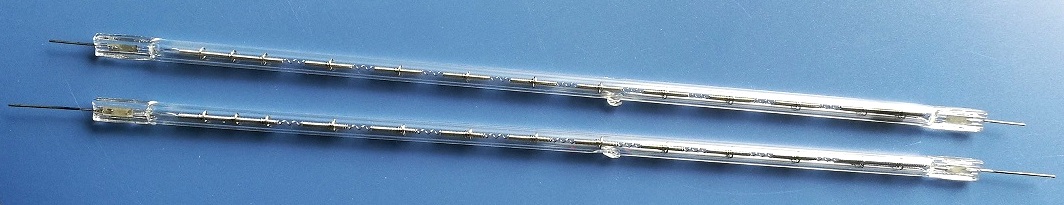

Pt-clad Mo ribbons (Platinum-coated molybdenum ribbons), which coat molybdenum ribbons with a platinum layer of between 0.6 and 1.0 ¦Ìm thick, are very easy to weld for high intensity discharge lamps (HID lamps). The Pt-coated Mo ribbons, with extremely reliablity and very high quality, are praised by many renowned companies.
|
 |
 |
|
|
|
| |
|
| |
|
Dimensions
|
|
Thickness (mm) |
Width(mm) |
Thickness of films(¦Ìm) |
0.03¡À0.005 |
0.7¡À0.10 |
0.6¡À0.15 |
0.02¡À0.005 |
1.0¡À0.10 |
1.0¡À0.15 |
|
1.5¡À0.10 |
|
|
|
|
|
